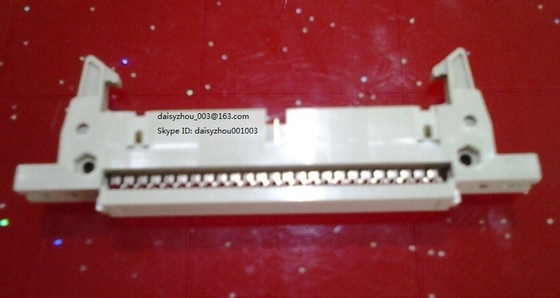

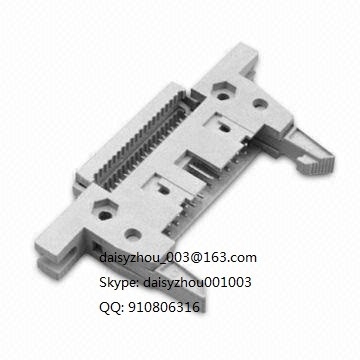

2.54mm IDC Type Flat Ribbon Connector Shrouded Header with/without Lock

Large Image : 2.54mm IDC Type Flat Ribbon Connector Shrouded Header with/without Lock

Product Details:

Place of Origin:	China
Brand Name:	NO MARK
Certification:	CE ROHS ul
Model Number:	IDC10-50

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.5
Packaging Details:	200pcs per inner box
Delivery Time:	7 days after get deposit
Payment Terms:	T/T
Supply Ability:	1000PCS PER DAY

Contact Now

Detailed Product Description

Rated Voltage:	200V	Rated Current:	1A

Materials: Contact: daisyzhou_003 at 163.com, qq: 910806316, skype: daisyzhou001003
- Insulator: PBT, glass reinforced and rated UL 94V-0
- Contact: brass
Current rating: 1A
Contact resistance: 30MΩ maximum
Insulation resistance: 3,000MΩ minimum
Dielectric with standing voltage: 500V AC for one minute
Operating temperature: -40 to +105°C
Terminated with 1.27mm pitch flat ribbon cable
Mating suggestion: A01, A03a, A29 and A35 series
Number of contacts: 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60 and 64

Primary Competitive Advantages:

Packaging
Quality Approvals
Country of Origin
Green Product
Product Features
International Approvals
Small Orders Accepted
Prompt Delivery
